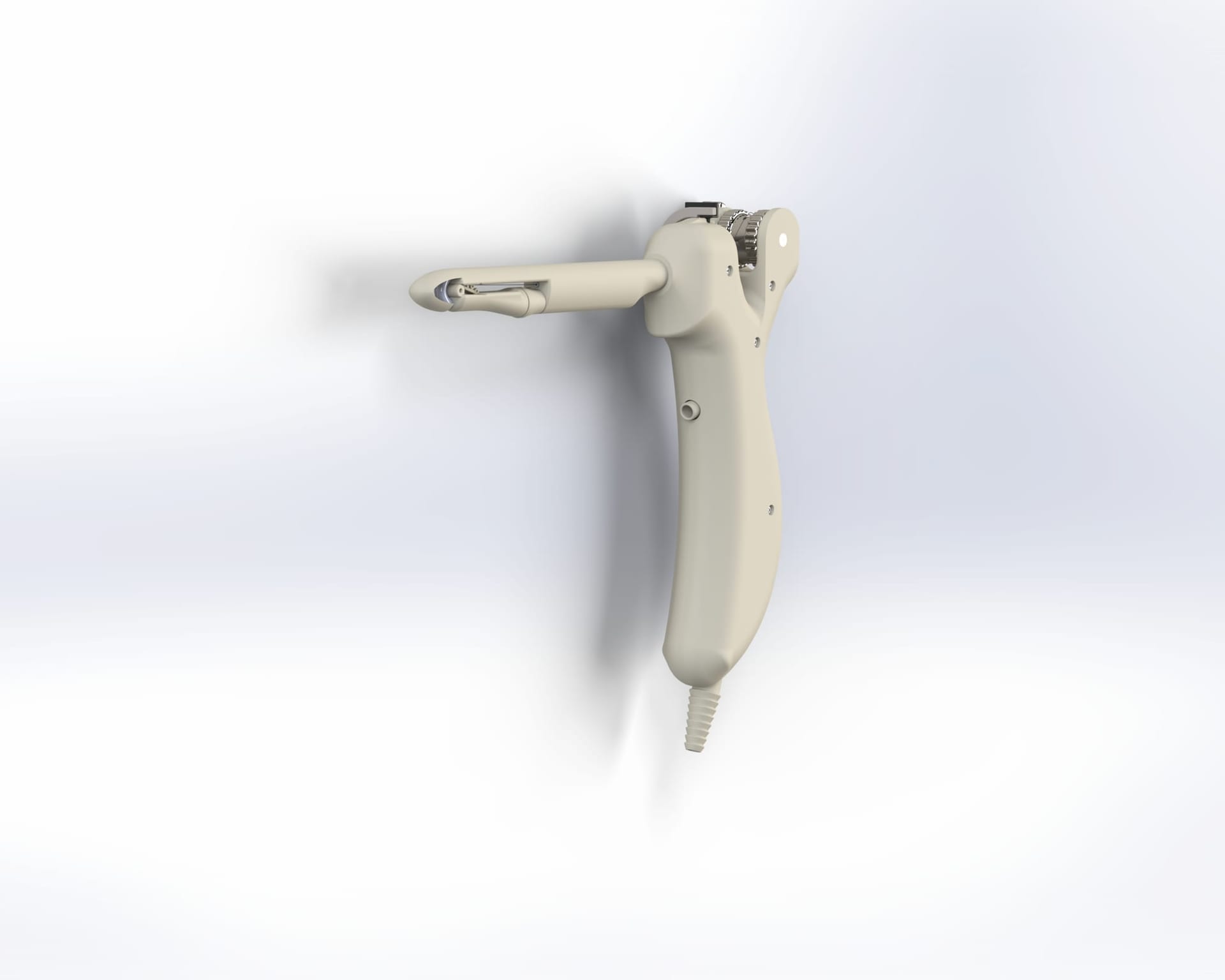

Vacuum band ligator
Contoured grip, rotating trigger, adjustable bent tube.
02Approach
We fixed the knob first, at the head of the grip within reach of the thumb, and ran the actuation inside the tube to the band tip. The contoured grip was then shaped around that path, ending in a tapered vacuum spigot, with screws closing the shell.
03Result
STEP files and 2D drawings covering the grip, knob mechanism and adjustable tube, which a prototype maker can quote and build from.
