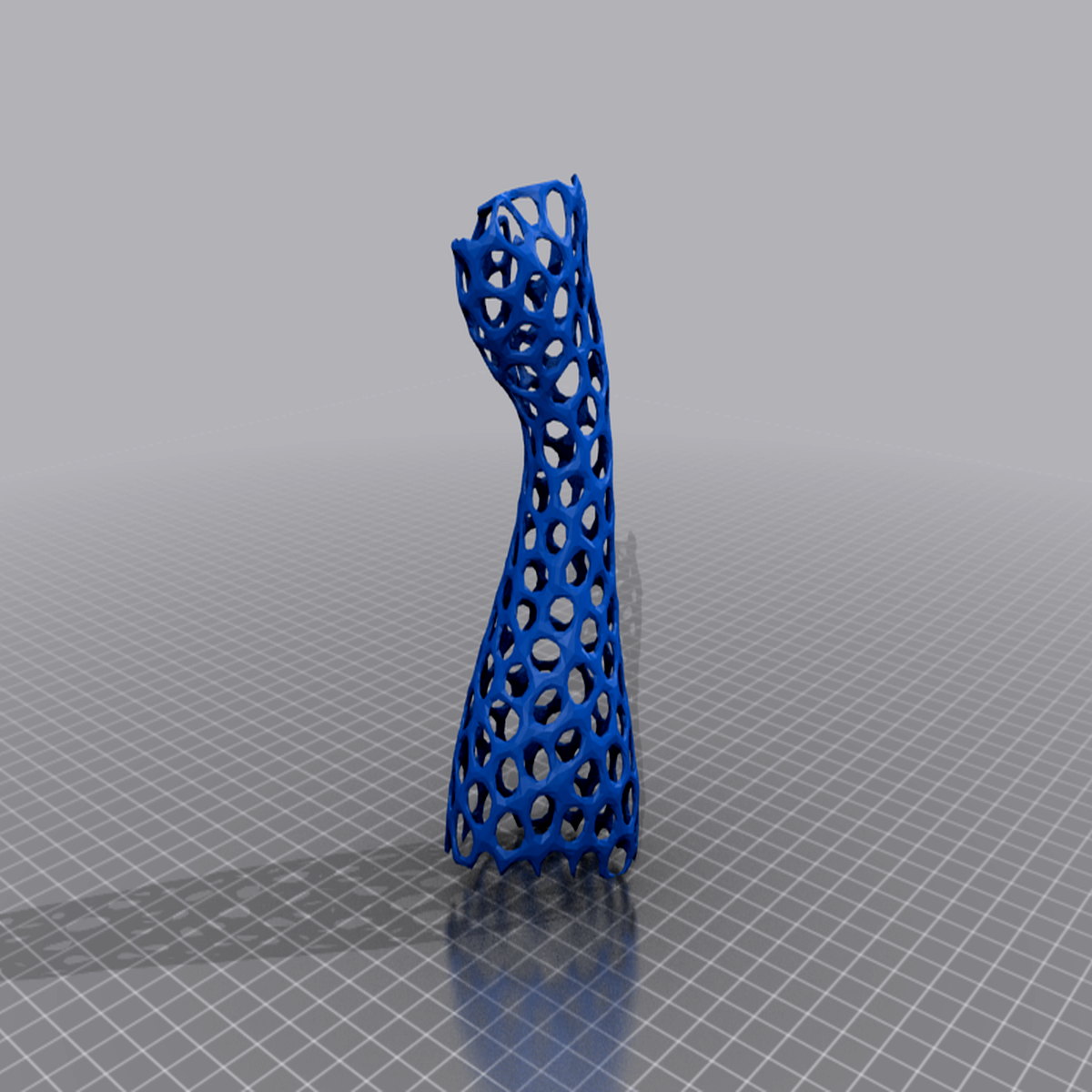

3D SCAN → PRINTCustom-Fit Arm Cast
One scan of a broken limb becomes a breathable, custom-fit cast. Lighter than plaster, ventilated, and shaped to that patient rather than to an average.
VIEW DETAIL ↗
MECHORYX is a CAD studio. People bring us what they can't build — a sketch, a broken part, a shape they can only describe with their hands — and we turn it into geometry a machine can cut. No minimum. No gatekeeping. If you can describe it, we can draw it.
We take small ideas as seriously as large contracts. The napkin sketch gets the same engineer.
We design for manufacture, not for renders. Every file we hand over can actually be made.
You own it. Every file, every revision, permanently and without conditions.
A sketch on a napkin. A part that snapped. A shape you can only describe with your hands. That is enough to start.
We sit with your idea until it has edges. Sketches become dimensioned geometry. You see it before anything is committed.
Parametric CAD, built to be manufactured. Tolerances, wall thickness, draft angles, material behaviour — decided on purpose, not by accident.
Native files, STEP, IGES, STL and 2D drawings. Everything a machine shop needs. You own all of it.
Different rules, different standards, different vocabulary. The work underneath is the same: take an idea and make it buildable.
DESIGN. · DEVELOP. · DELIVER.
Over three hundred delivered since we started. Twenty-four are shown here — enough to show the range without turning this into a catalogue. Open a field, then click any project for the detail.
3D SCAN → PRINTOne scan of a broken limb becomes a breathable, custom-fit cast. Lighter than plaster, ventilated, and shaped to that patient rather than to an average.

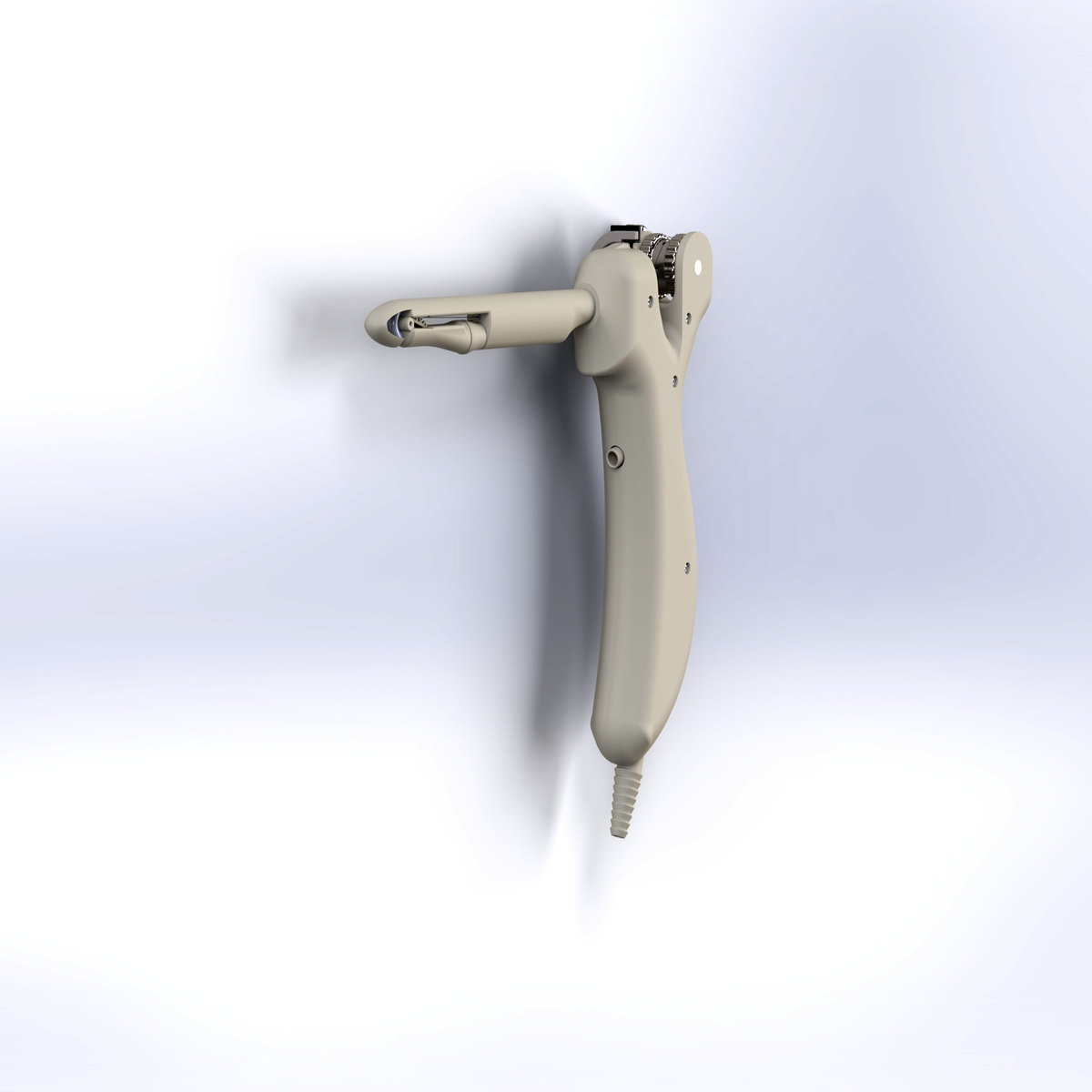

HANDHELD INSTRUMENTA hemorrhoidal band ligator with a contoured grip, rotating-knob trigger and internal actuation. The bent tube is adjustable, so it reaches positions conventional ligators cannot.

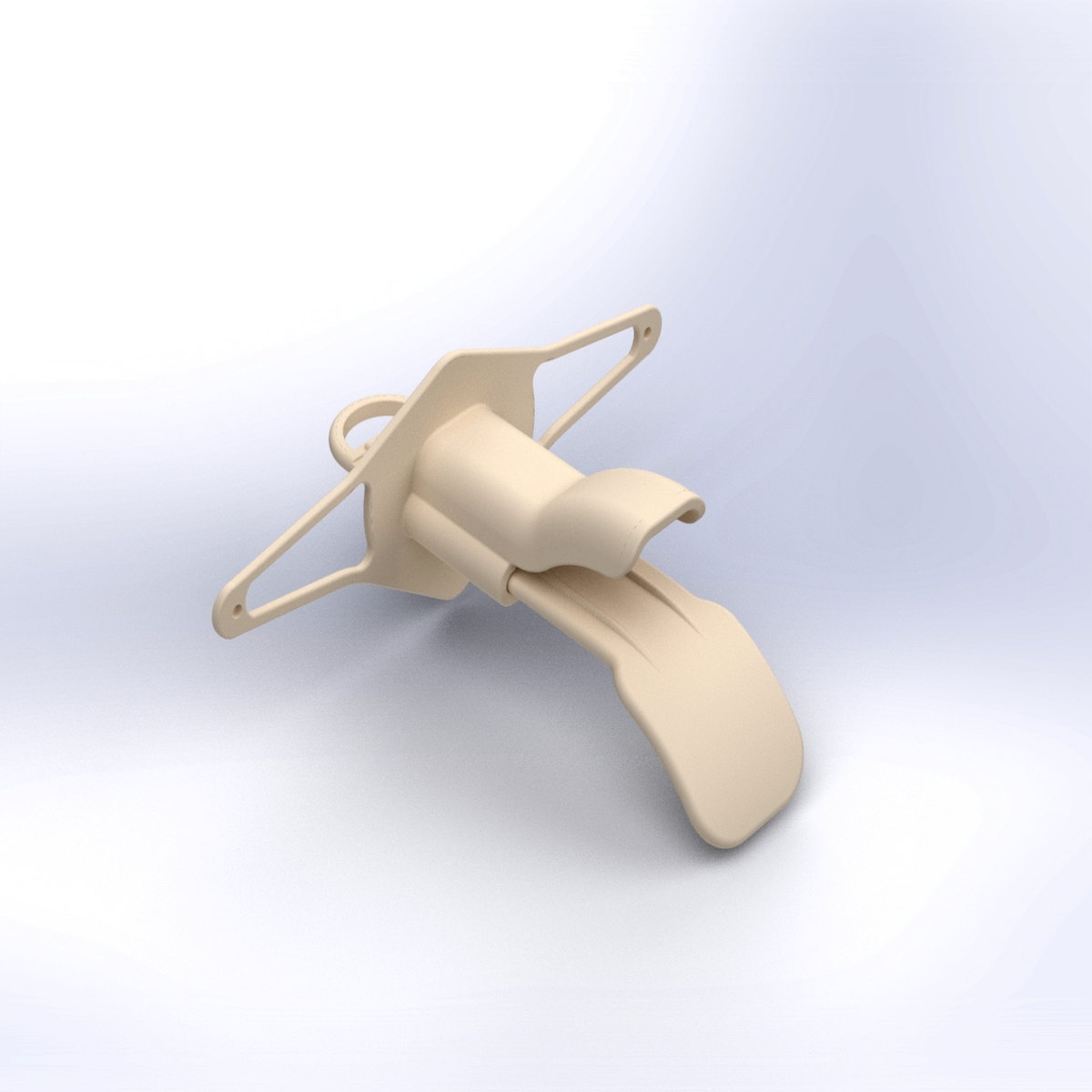

3D-MANUFACTURABLEAn open-frame bite platform that distributes occlusal force, cleans easily and holds instruments steady. Retention arms adjust; attachment points keep it located.

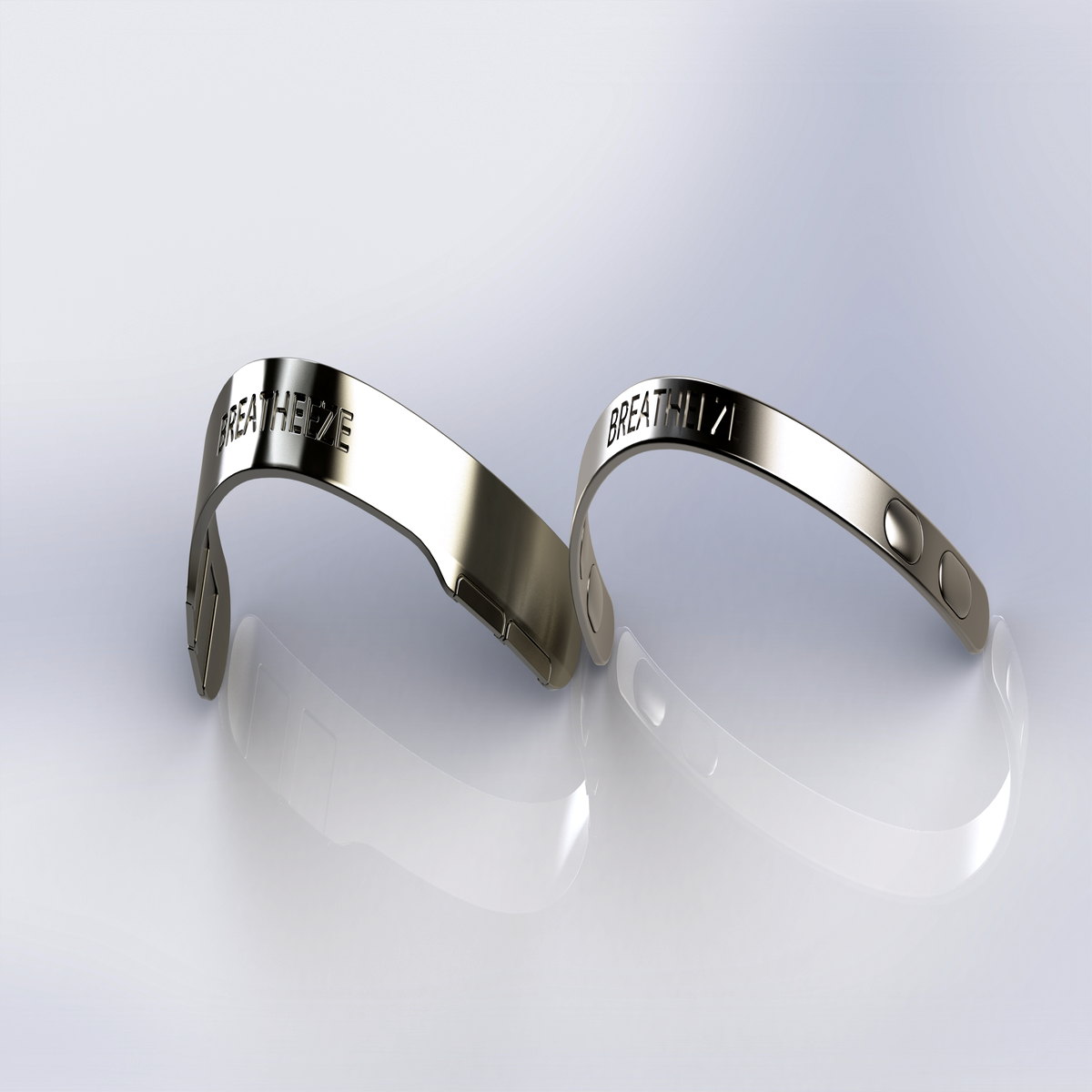

SHEET METALA contoured strip that conforms to the nasal bridge to improve airflow. Retention features hold position without adhesive; polished finish, minimal mass.

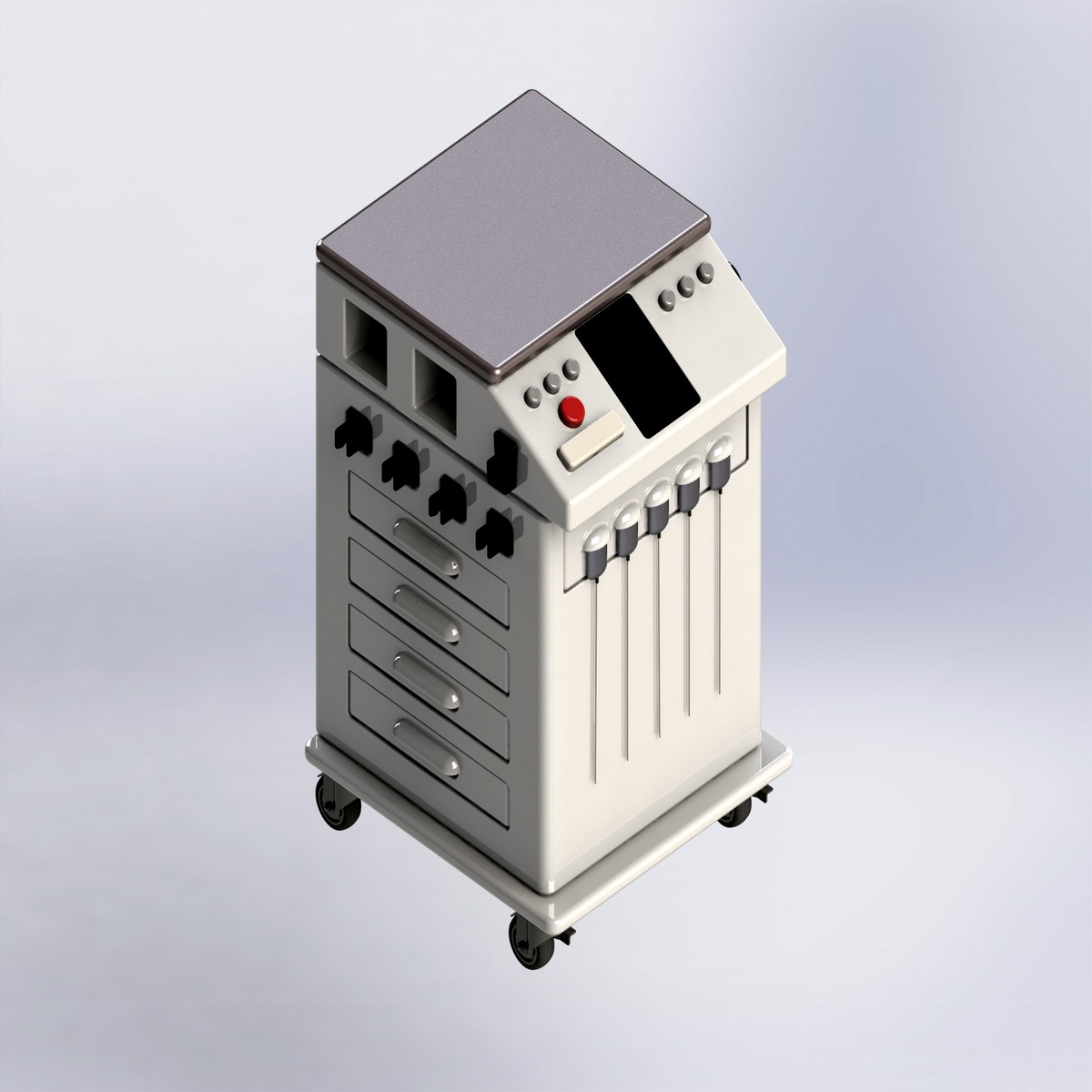

ENCLOSURE DESIGNA mobile clinical cart with integrated control panels, instrument holders, drawers and extendable trays. Rounded surfaces for safe handling and fast cleaning.

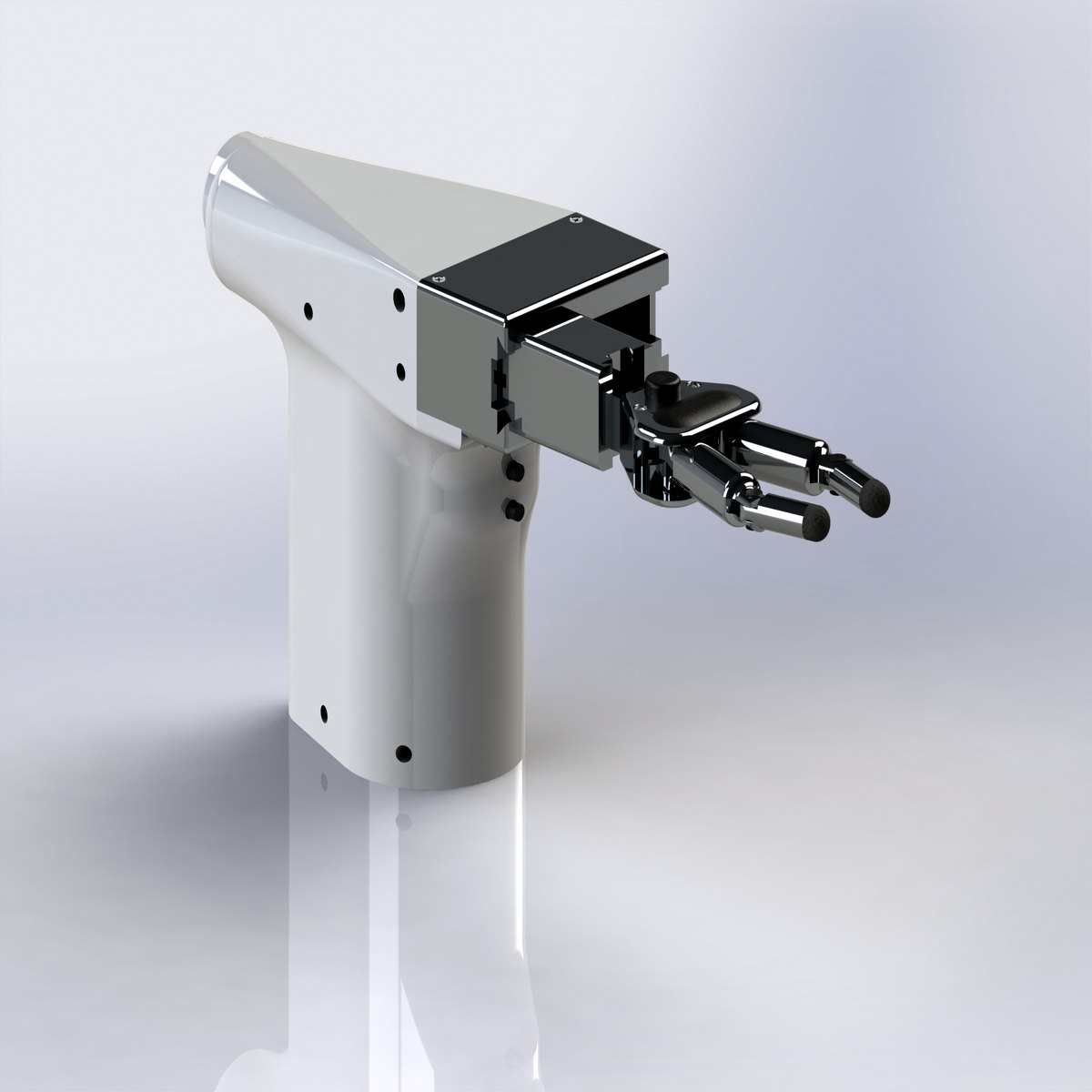

HOUSING + MECHANISMTwo devices, each enclosing a battery pack, PCB, charging port and moving mechanism. Adjustable heads reach specific muscle groups; the housing still opens for service.

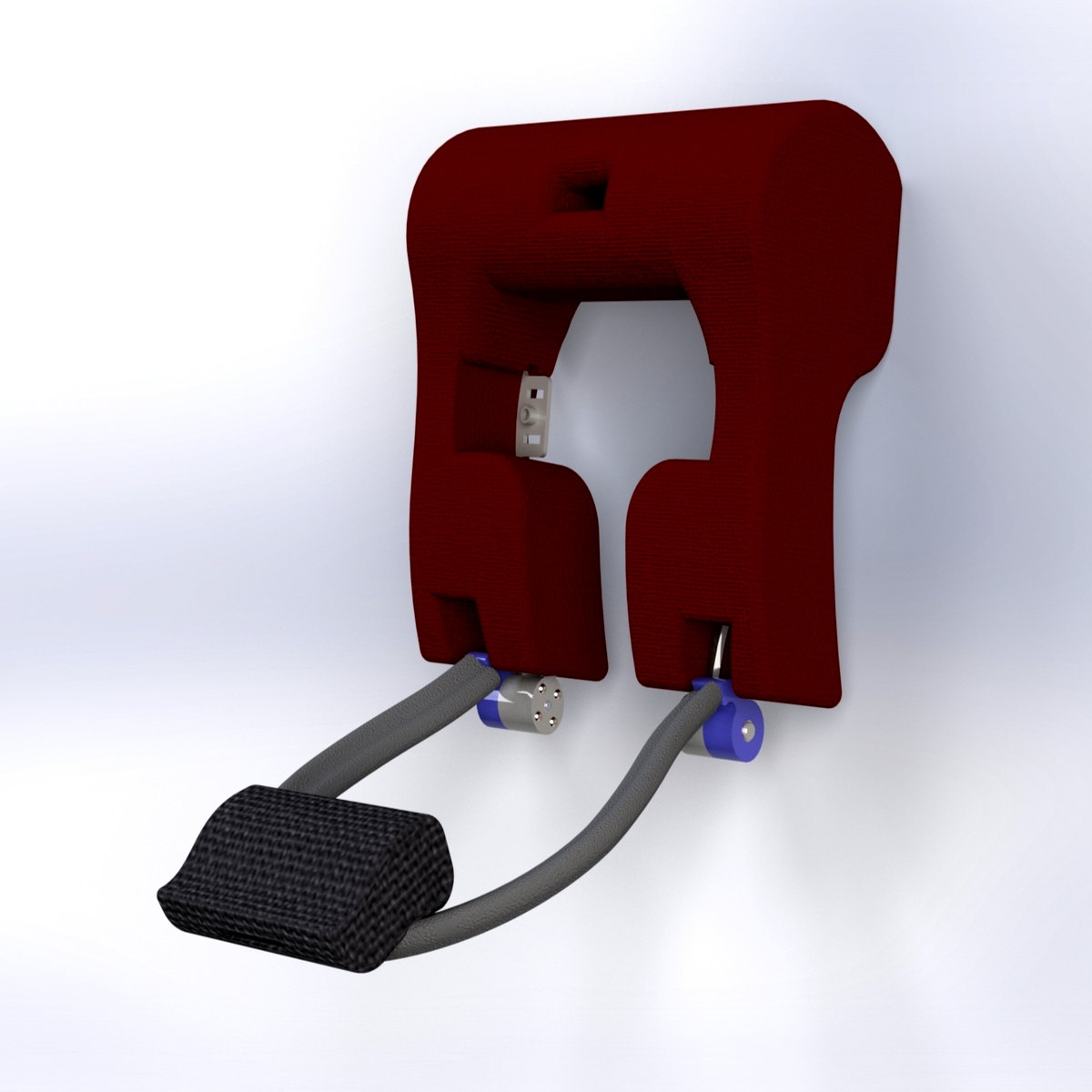

ADJUSTABLE SUPPORTContoured cushioning to spread pressure, with adjustable arms and mounting that suits different users and seat configurations.

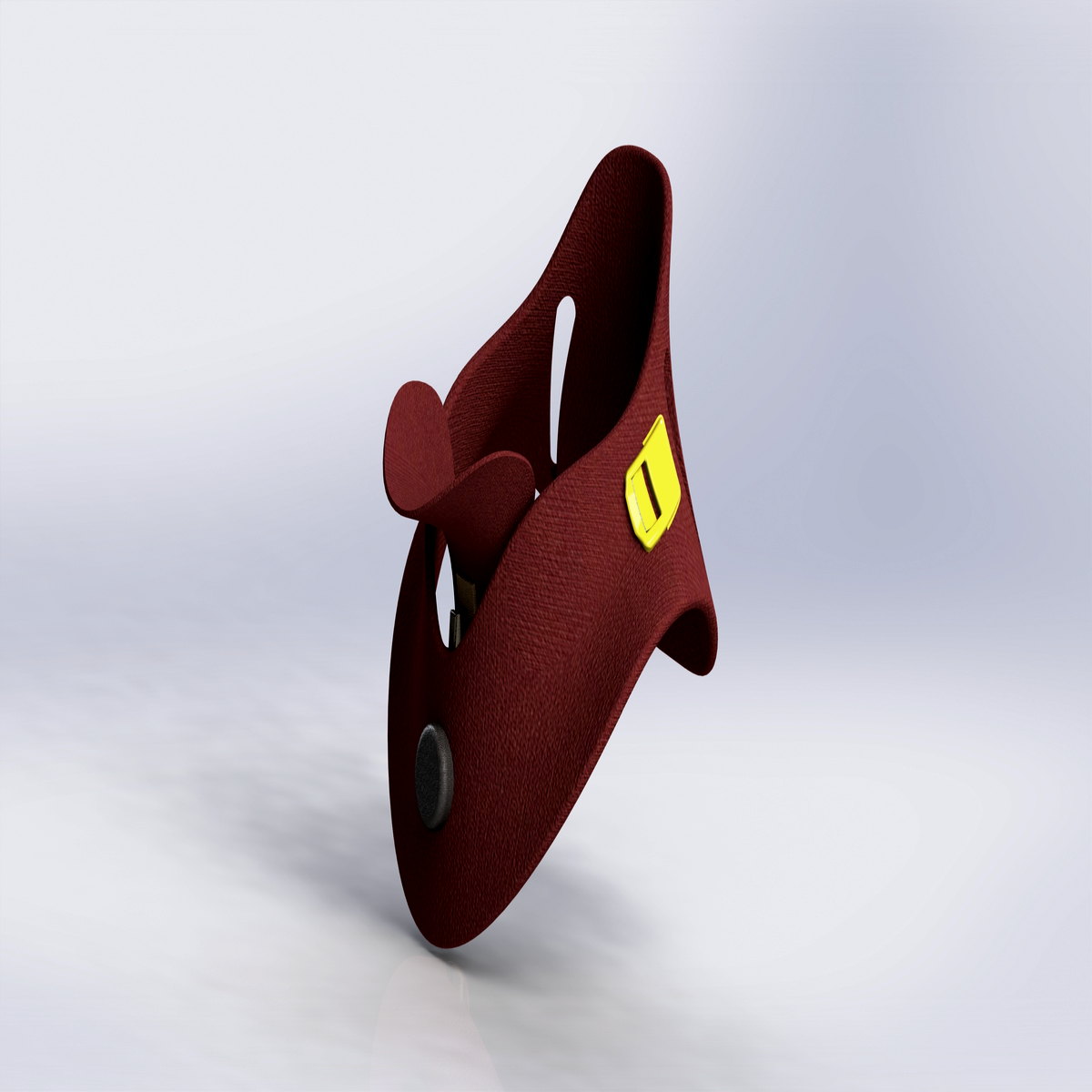

CERVICAL SUPPORTAnatomically contoured cervical support for post-operative care and rehabilitation. Adjustable fastening, breathable material, stable without restricting movement.

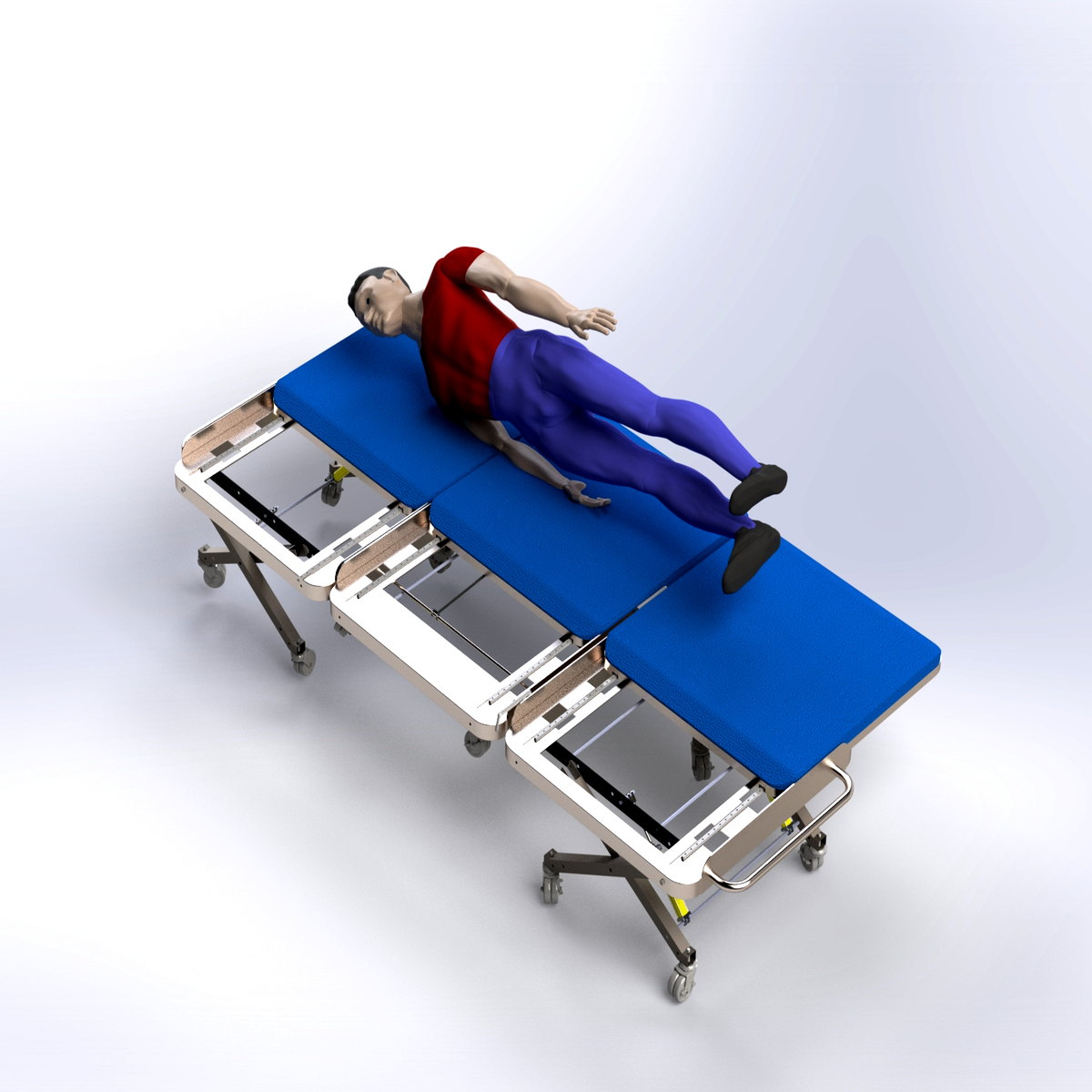

MECHANISM + FRAMEModular folding sections give multiple positions from one frame. Reinforced structure, 360° casters, and it folds down for storage and transport.

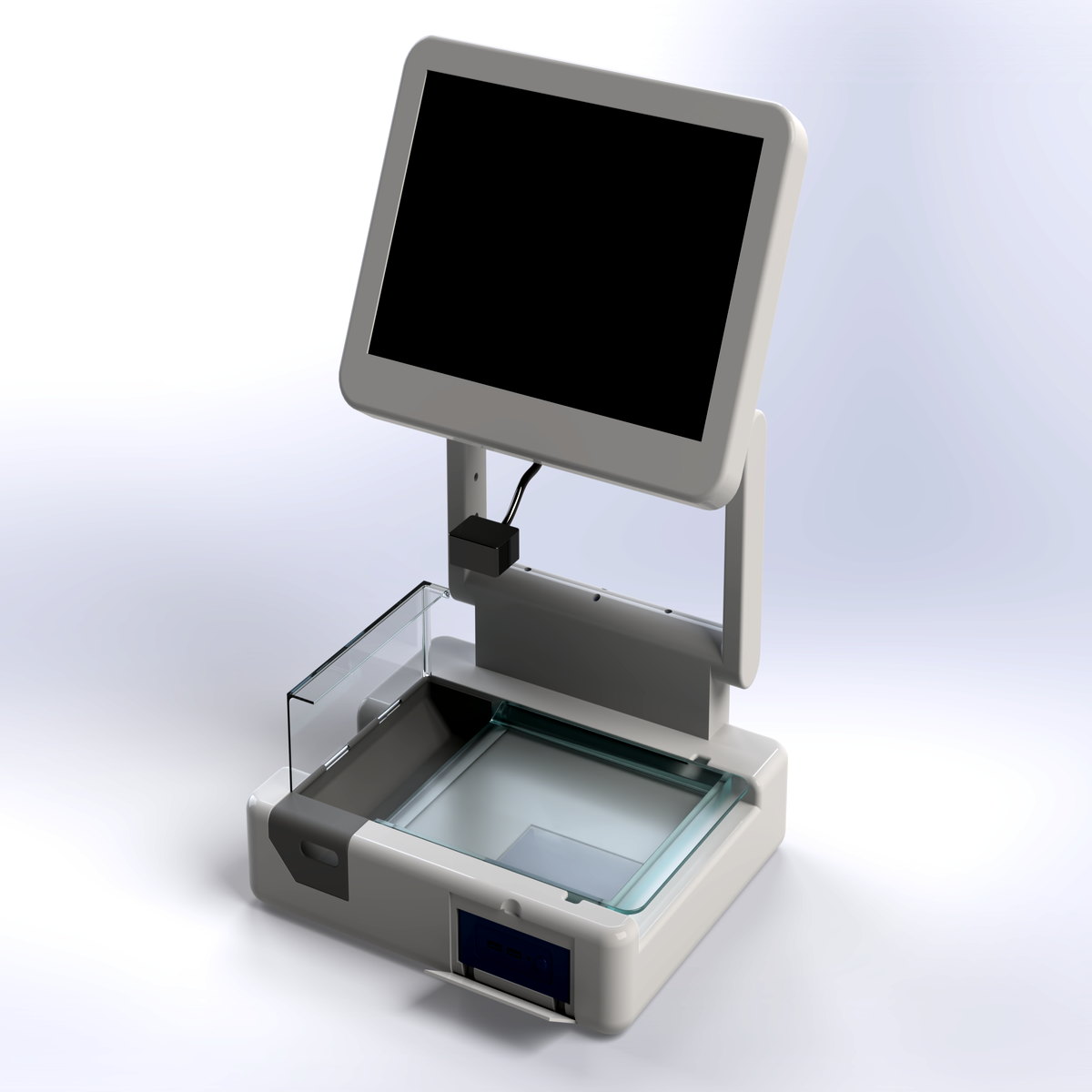

DEVICE + ASSEMBLYTouchscreen, high-resolution camera and a precision counting mechanism in a portable housing. Full BOM and assembly drawing delivered with the CAD.

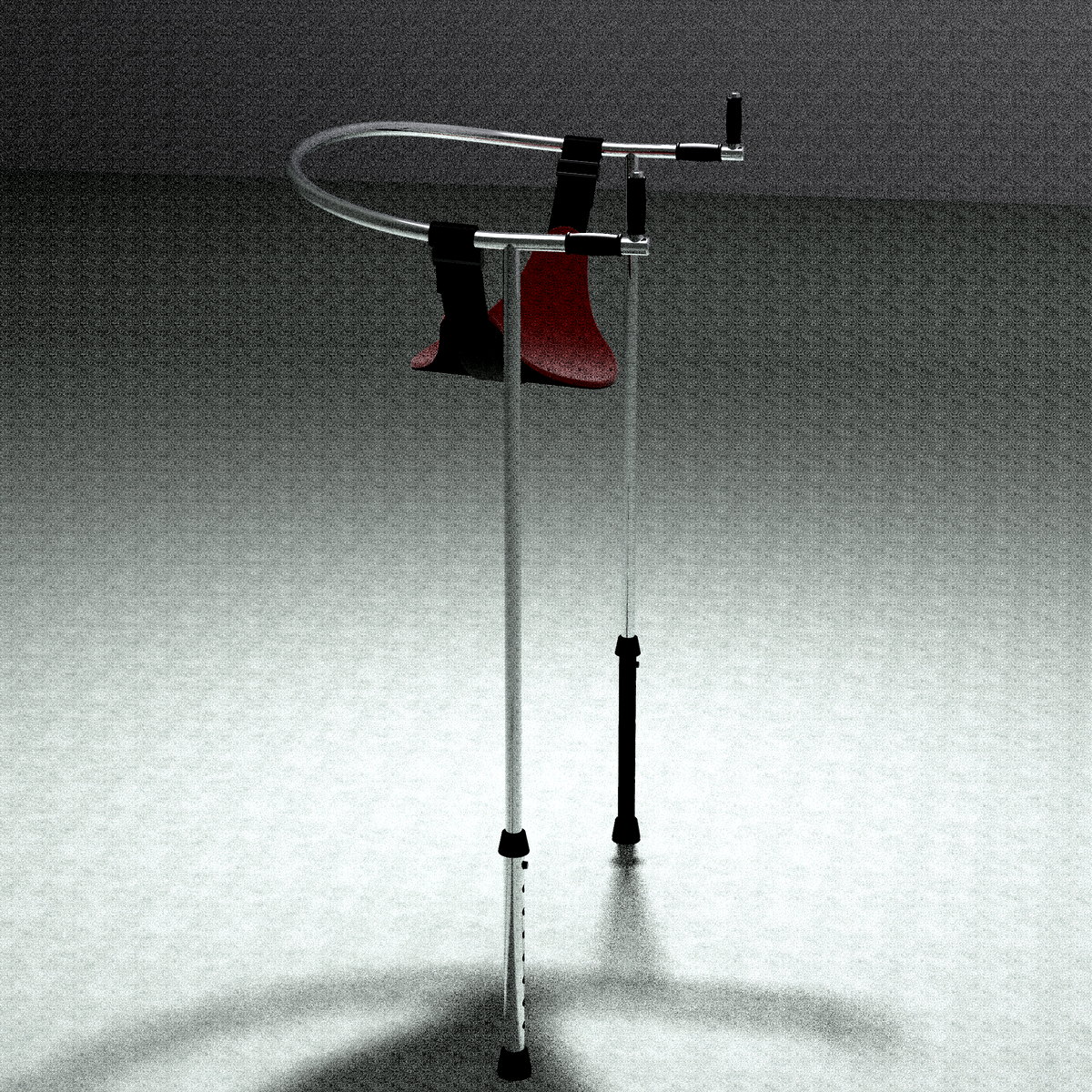

MOBILITY AIDA suspended support seat on an adjustable-height frame — reduces lower-limb fatigue and gives somewhere to rest mid-walk.

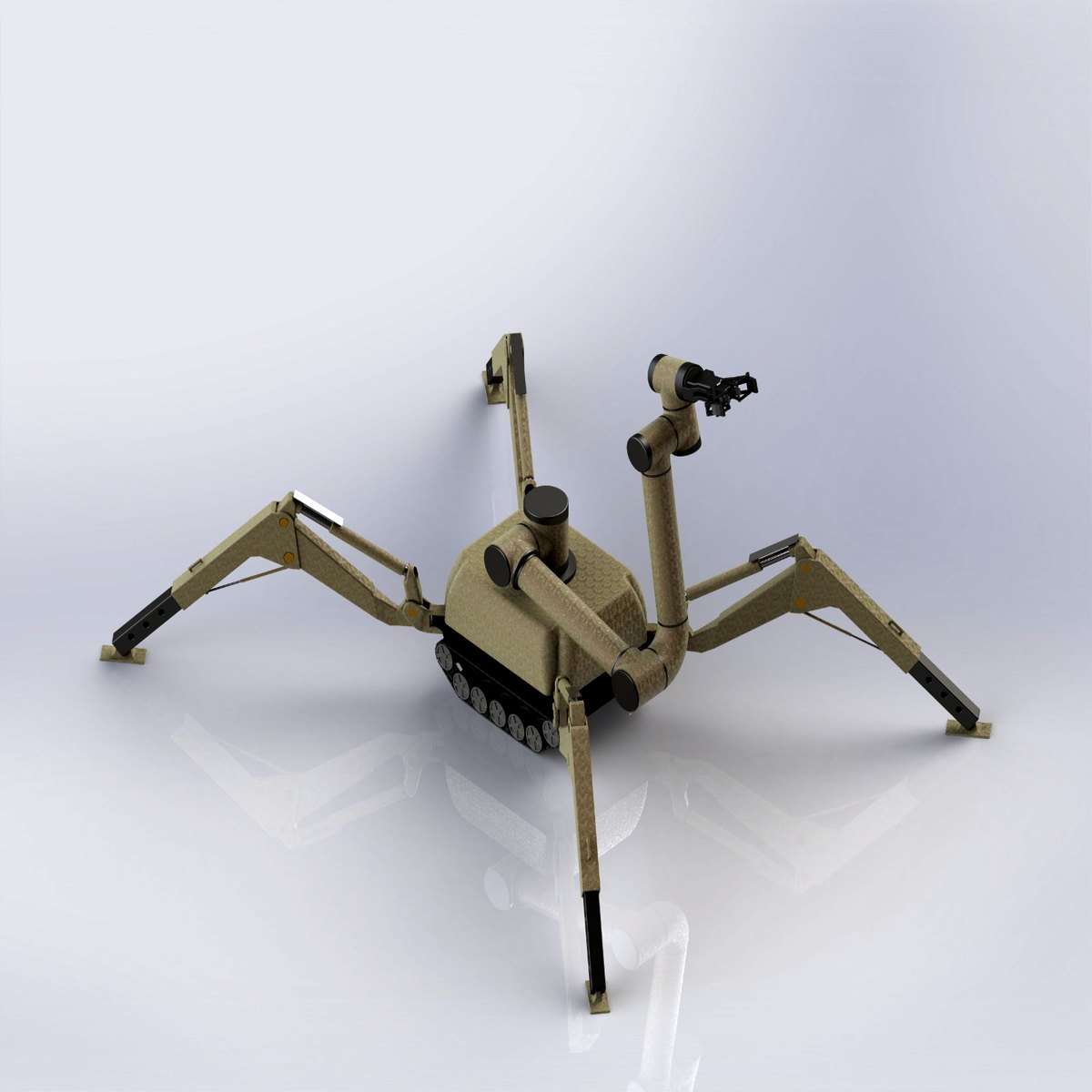

MILITARY GRADEArticulated walking legs combined with a caterpillar track, so it crosses rugged ground, obstacles and confined spaces. Modular payload mounts for sensors and cameras.

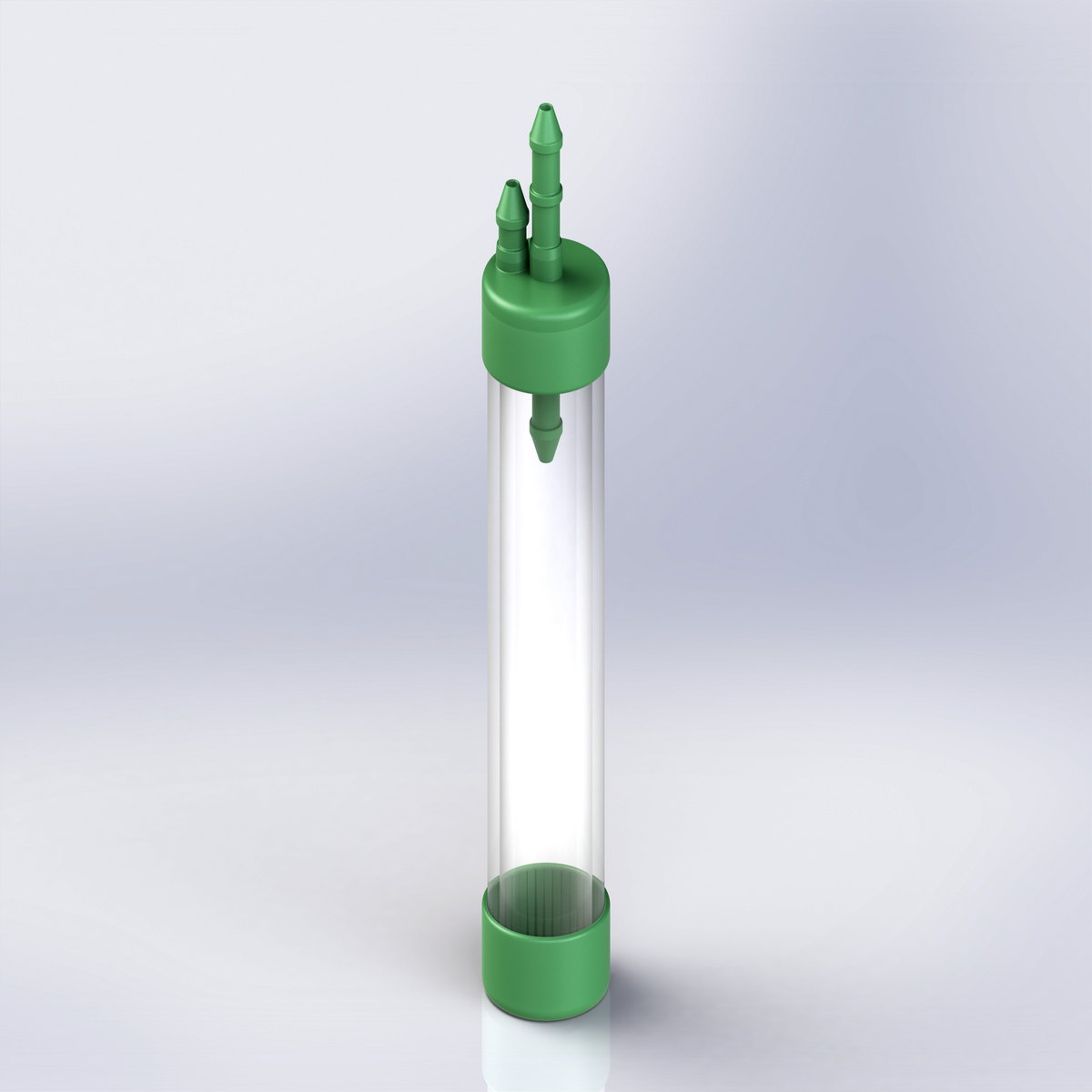

REFERENCE → CADReference images converted into fully manufacturable CAD with accurate geometry and corrected internal flow paths — no drawings, no supplier, no source files.

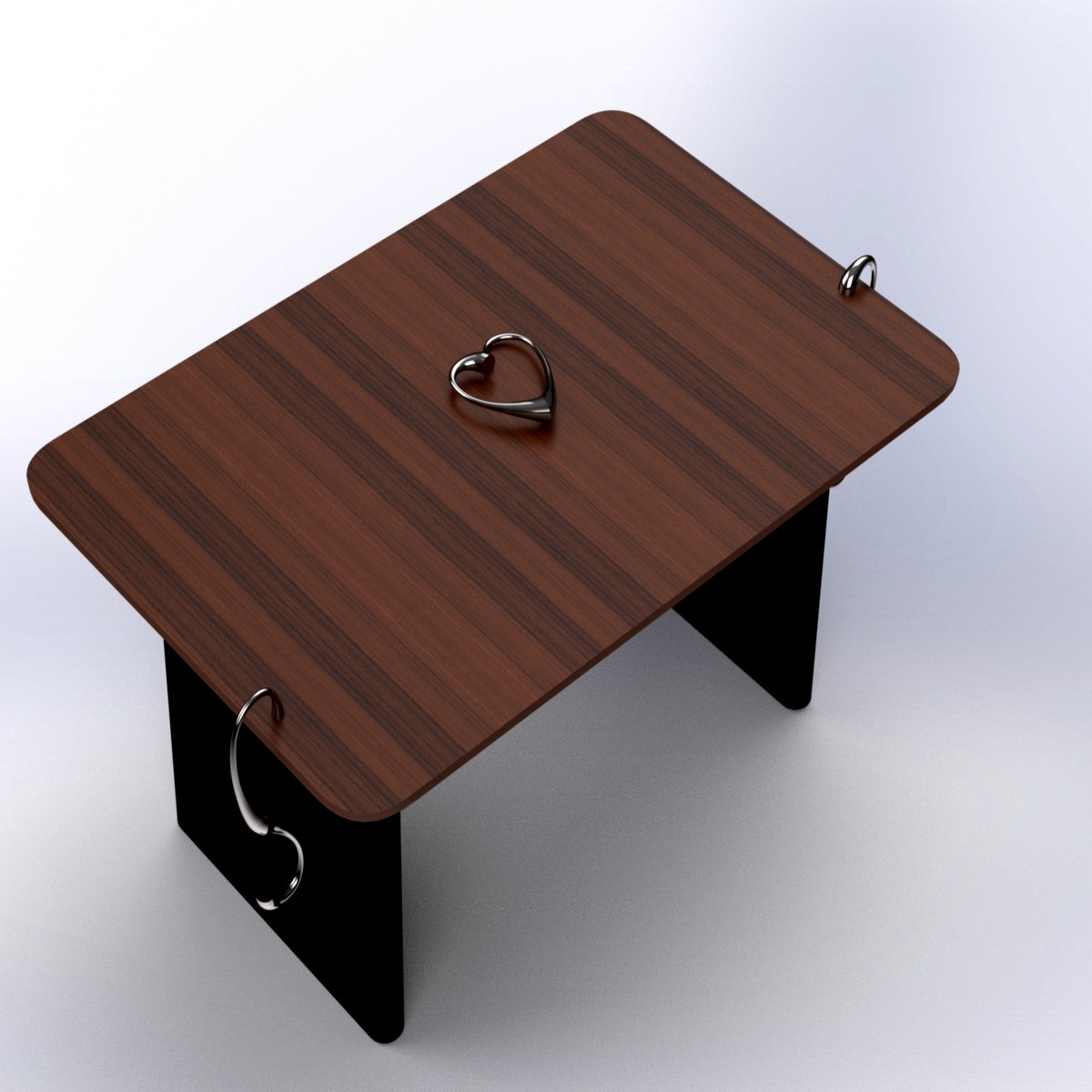

REFERENCE → PRODUCTA table-mounted bag hook rebuilt as production-ready CAD from reference photographs, with the geometry cleaned up for real manufacture.

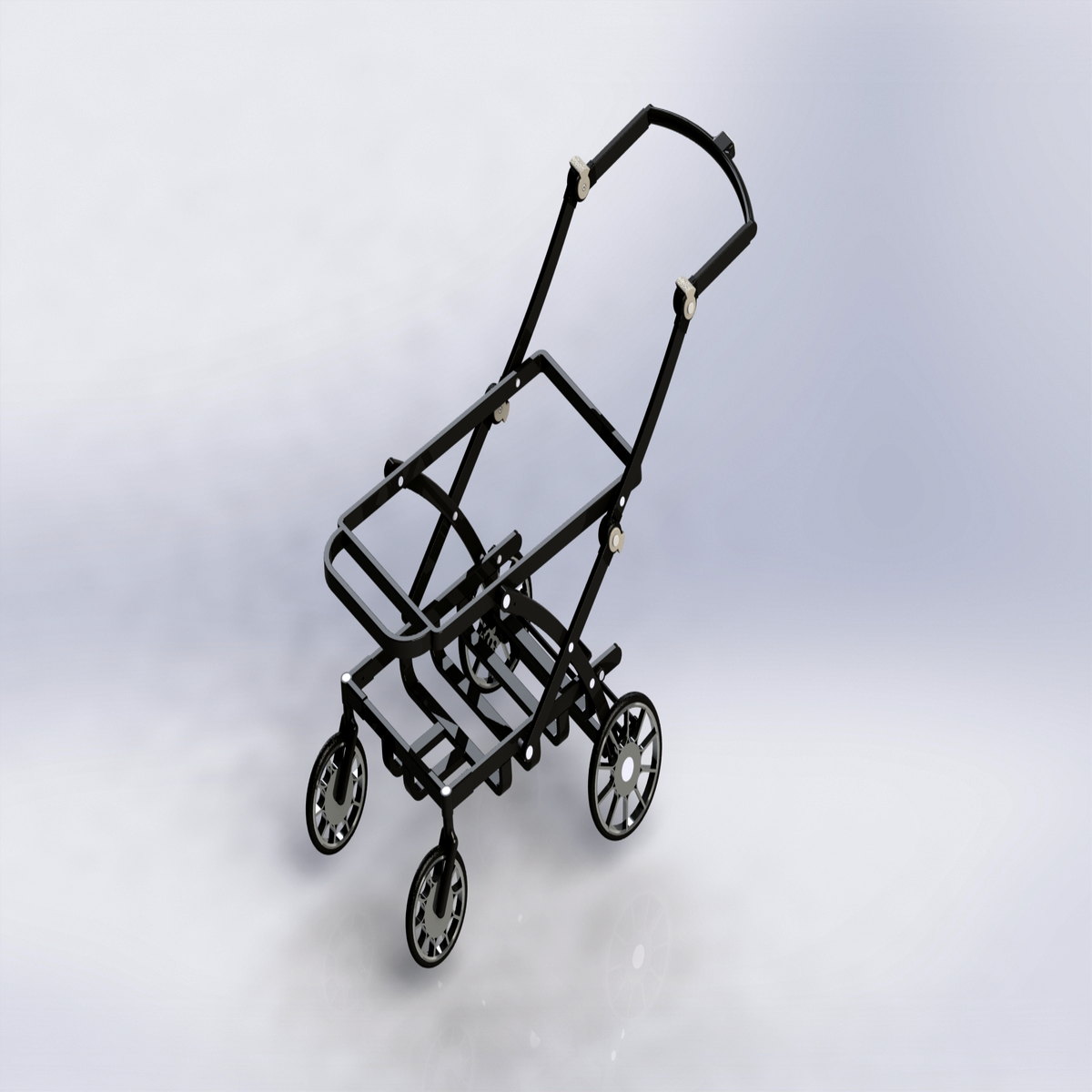

FRAME ENGINEERINGA folding frame that carries four infants without losing stability. Steering geometry, fold kinematics and load paths worked through at full scale.

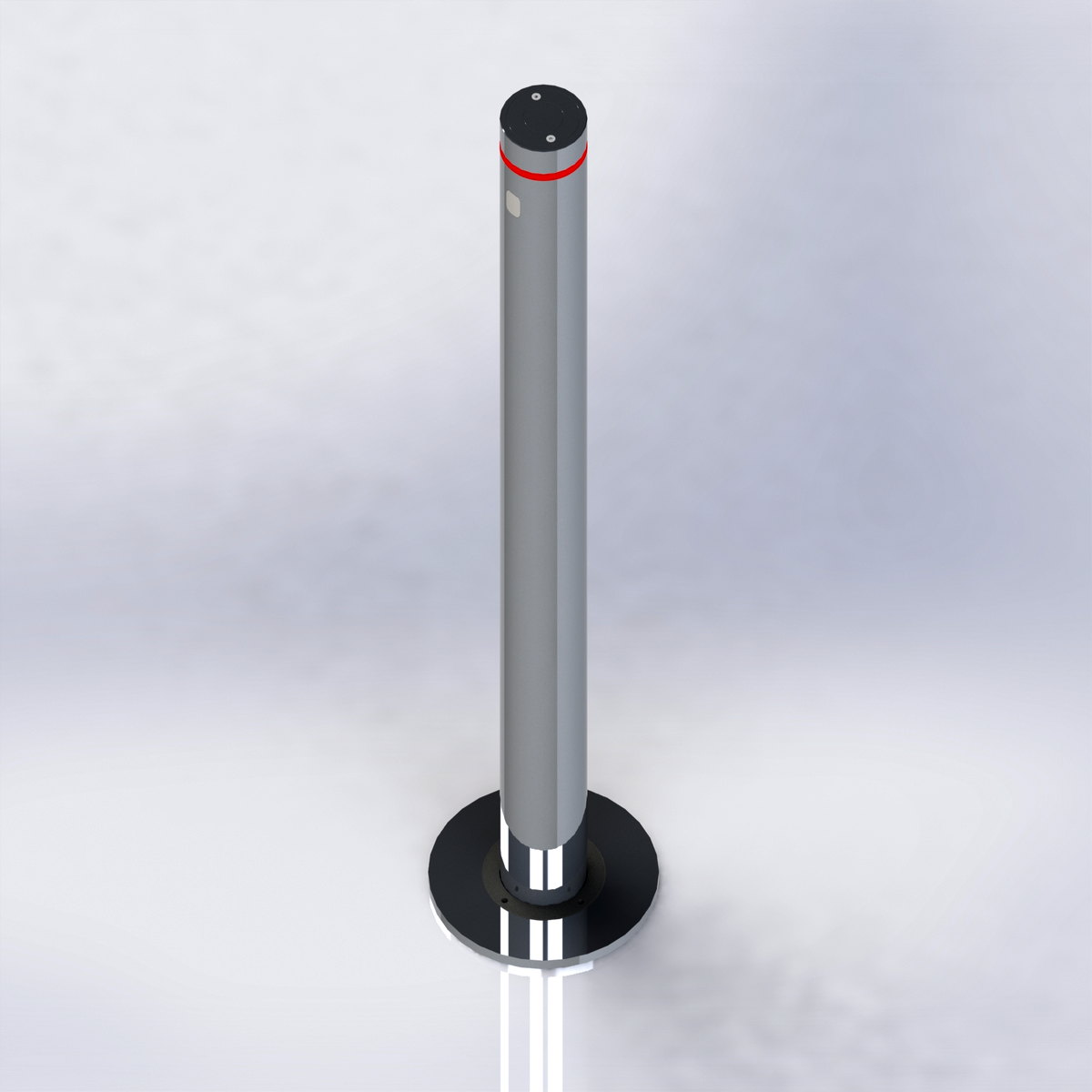

ACTUATED ASSEMBLYA retractable bollard that rises and drops on a remote signal. Weather-sealed, built for commercial, industrial and smart-city access control.

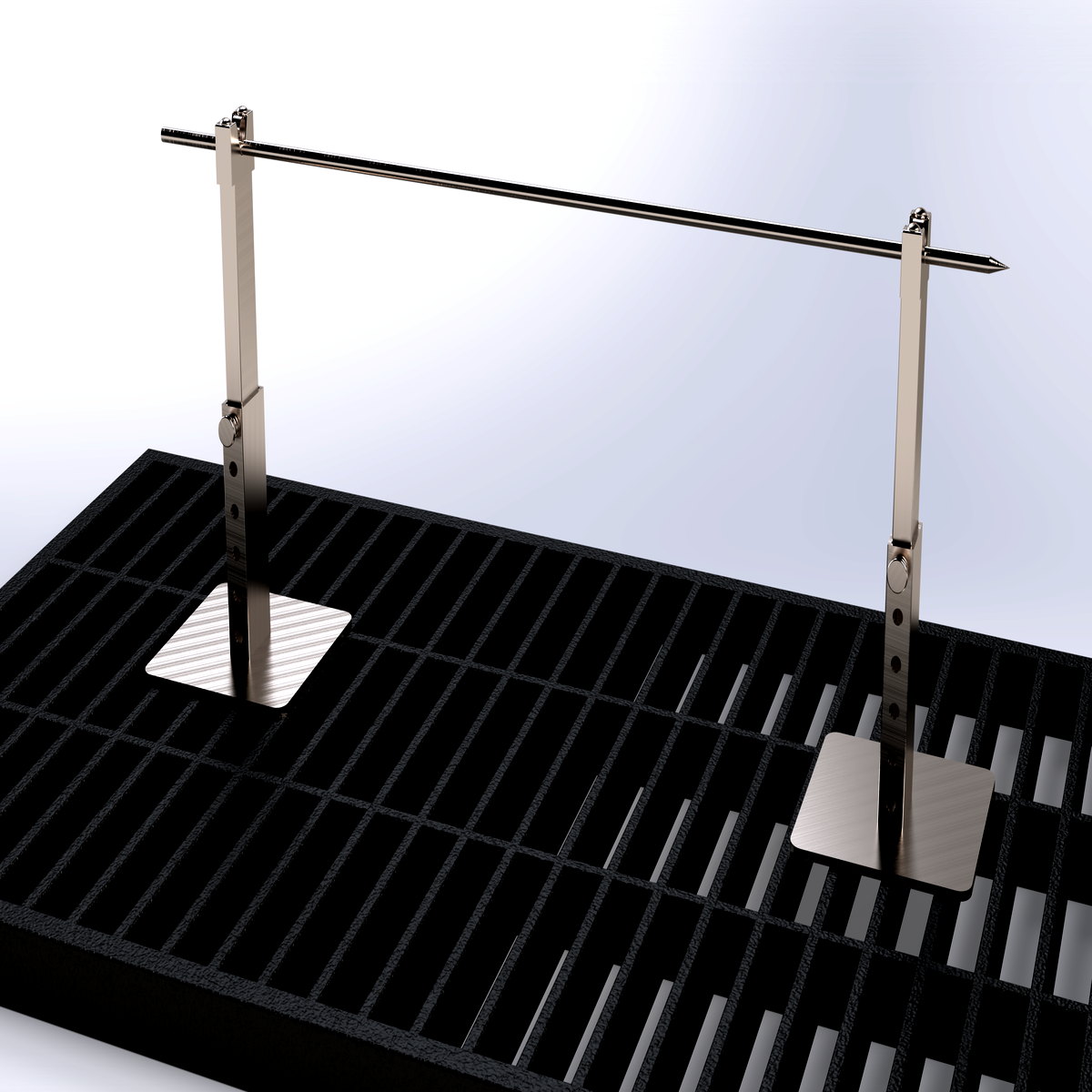

STAINLESS ASSEMBLYAn adjustable stainless support that holds peppers upright for even cooking. Width adapts to different grills; it comes apart for cleaning.

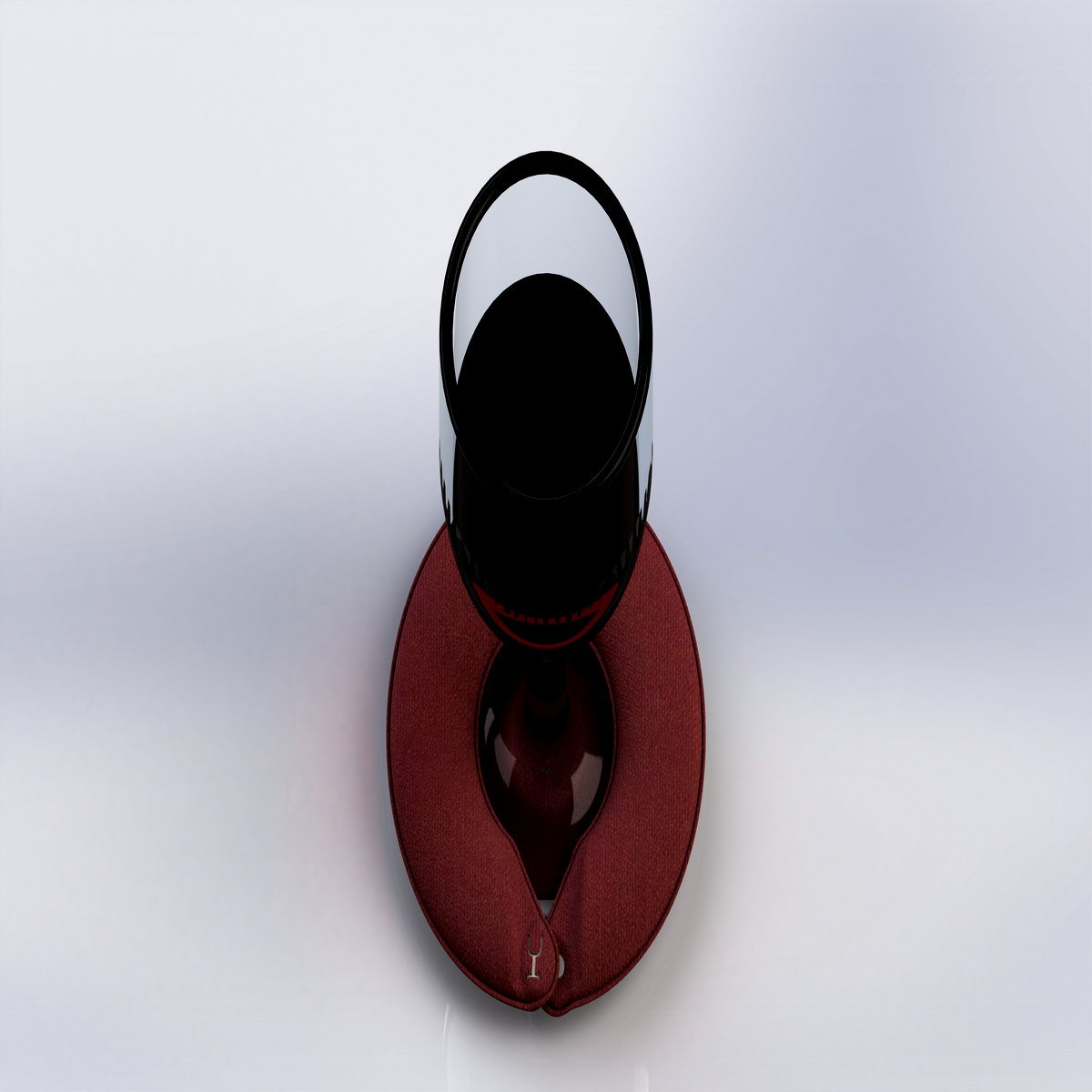

WEIGHTED BASEA weighted, non-slip base that steadies a stemmed glass on uneven or outdoor surfaces. Ergonomic profile, no clamping.

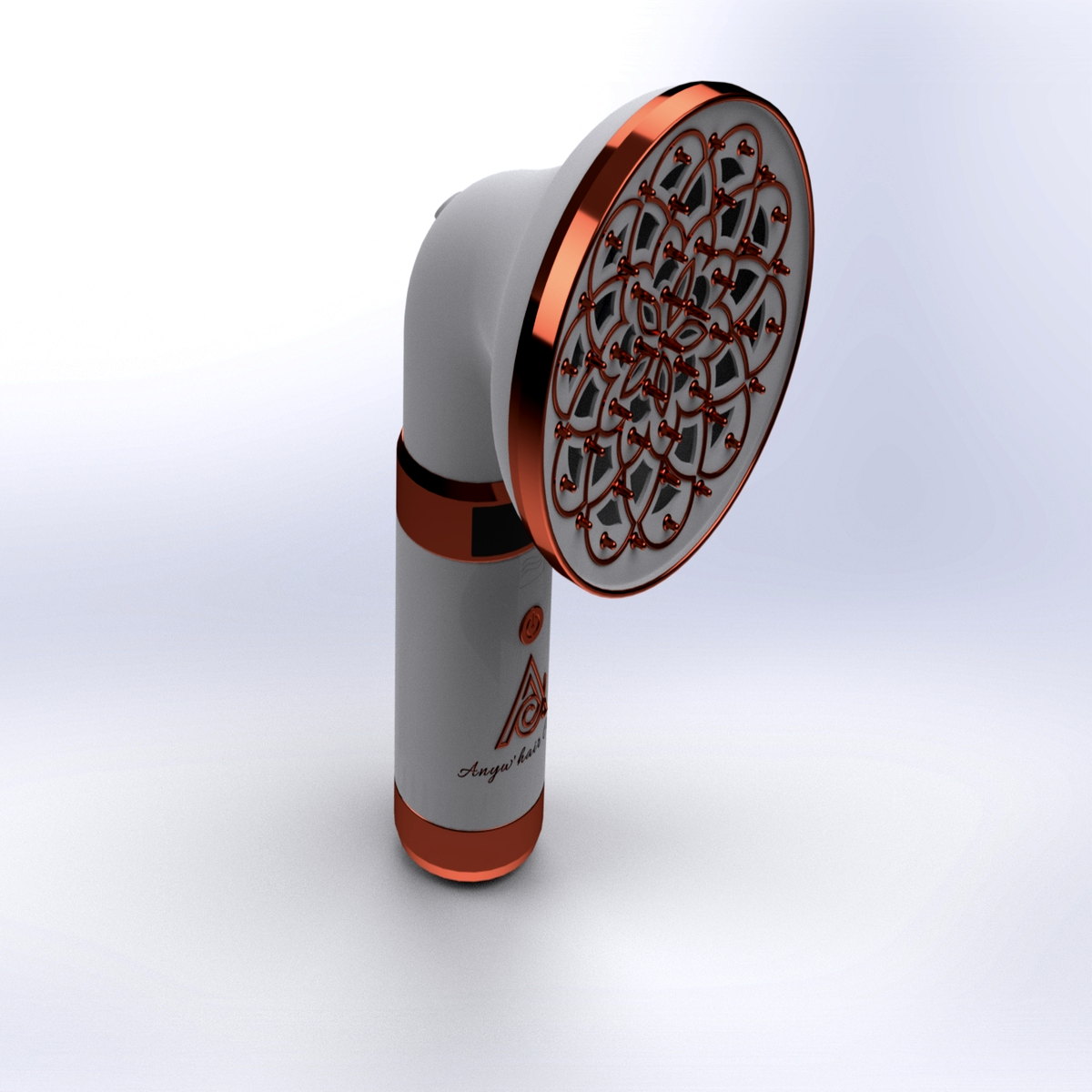

APPLIANCE HOUSINGDryer, straightener and curler in one body, built around a deep-scalp airflow path with precision heat control.

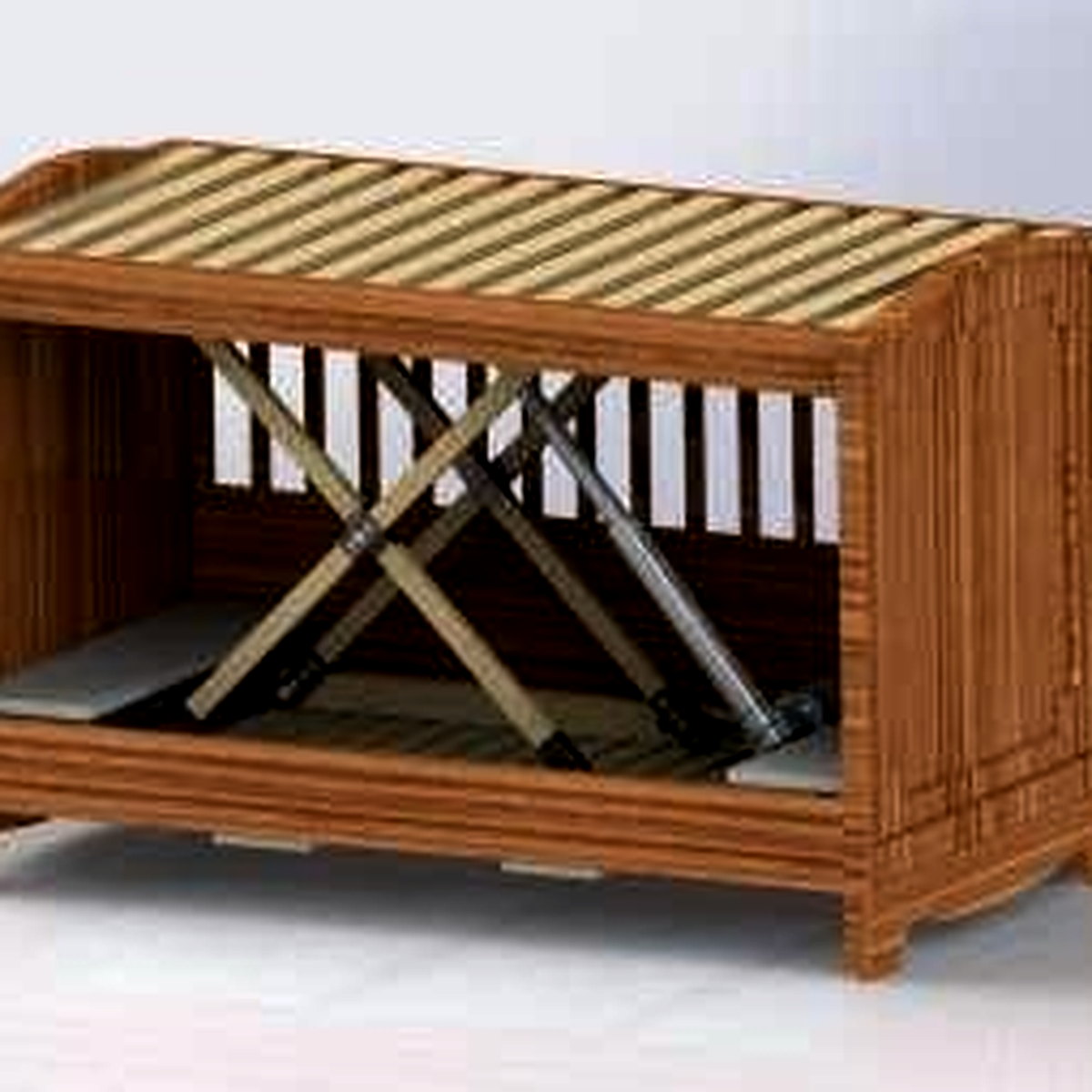

MECHANISM DESIGNA one-click height mechanism lets the mattress base drop as the child grows. Premium wood, child-safe materials, no exposed pinch points.

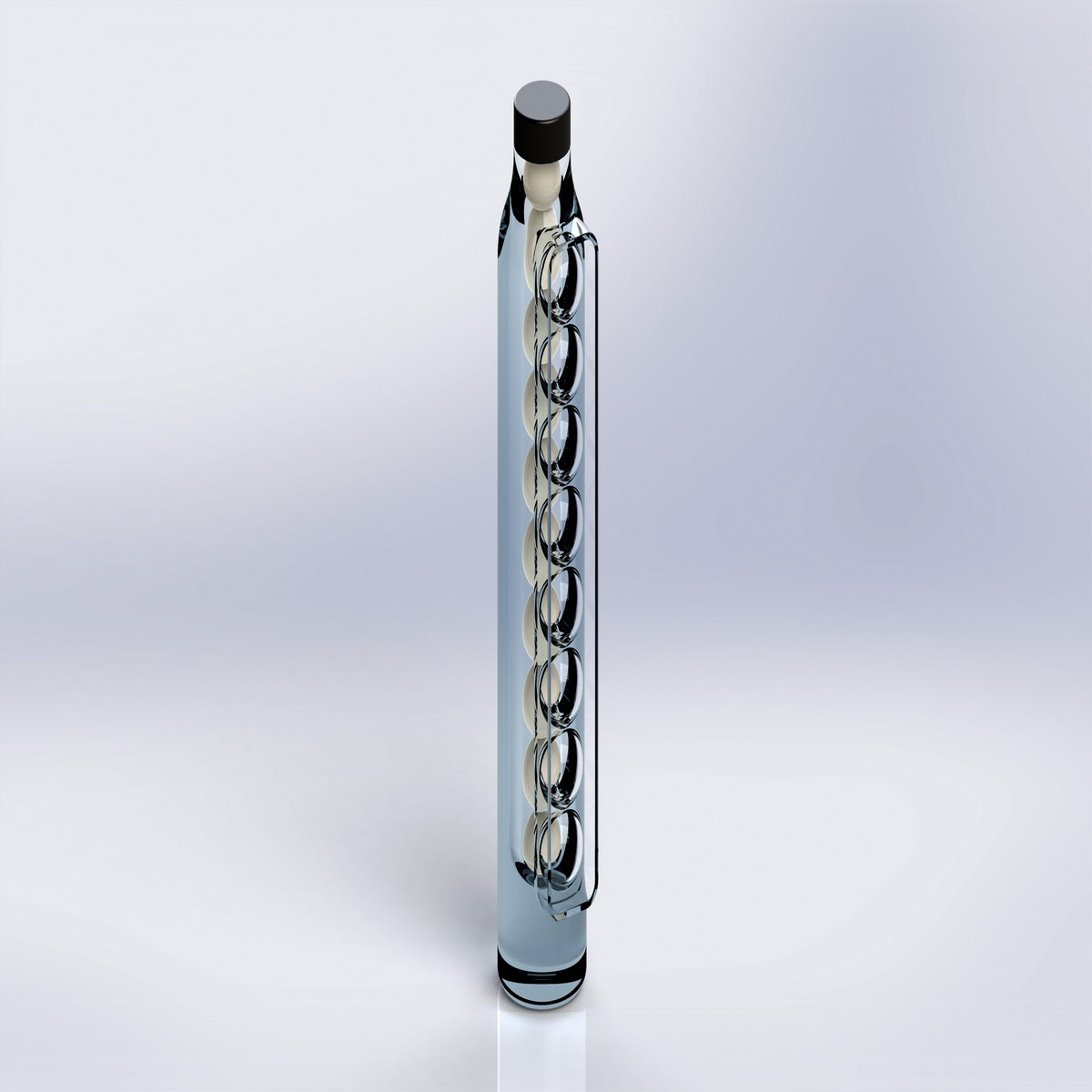

SEALED HOUSINGAn external ice-ball housing keeps ice fully separate from the water — long cooling with no dilution and no contamination path.

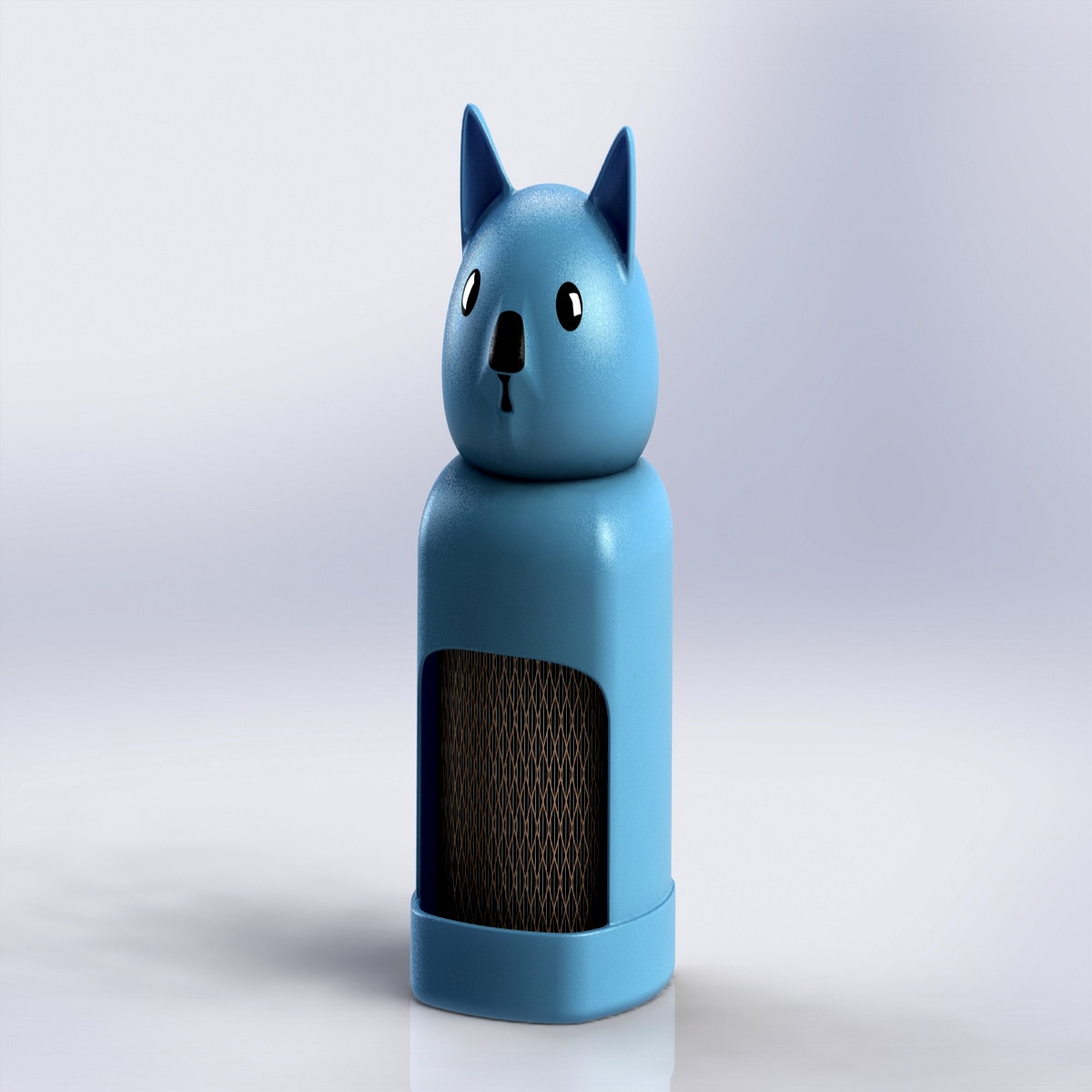

SILICONE MOULDINGRear inlet, front outlet, filter media between. Moulded in silicone to a cat form that reads as a toy rather than an appliance.

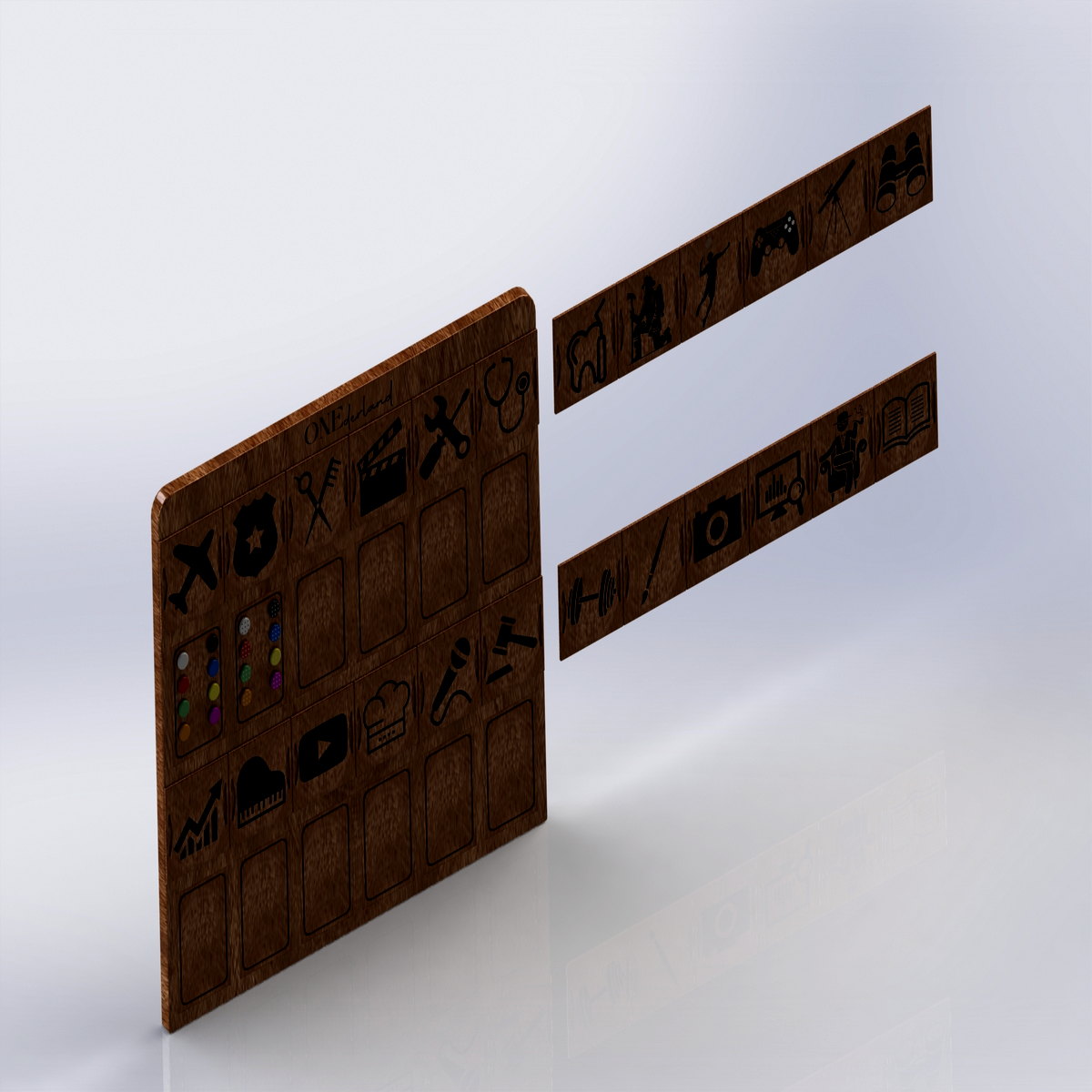

CHILD-SAFE WOODInterchangeable career-themed tiles on a wooden board — built for fine motor skills and decision-making, and for surviving a play centre.

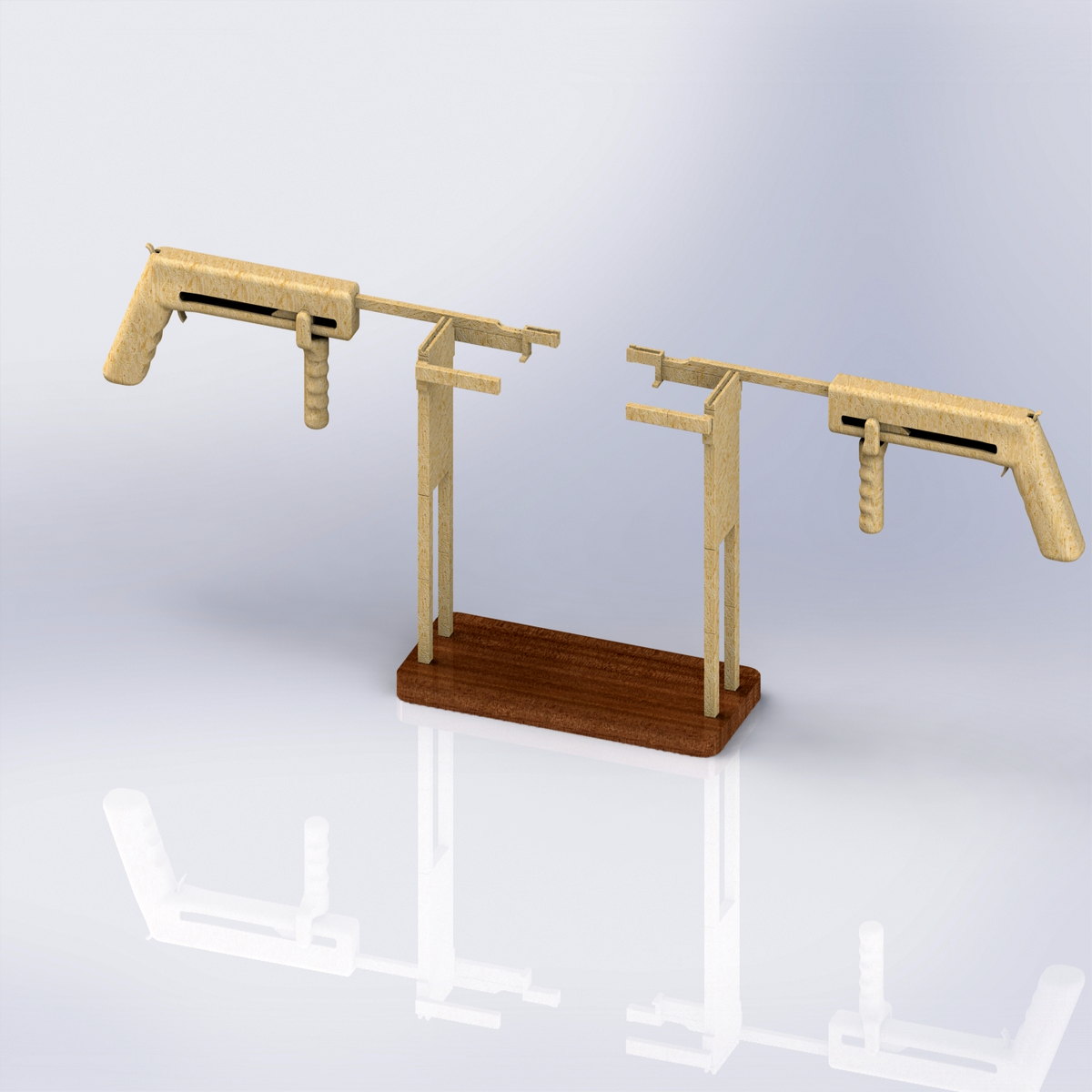

TABLETOP MECHANISMMiniature spring launchers and elevated balloon targets on a shared stand. Wood and plastic, reusable, and safe enough for a table full of people.
A sample of the archive. Three hundred–plus projects delivered across these six fields — ask for anything you don't see here.
A mounting bracket — the most ordinary part we make. Three inputs, and the flat pattern, the hole positions, the bend note, the mass and the manufacturability check all rebuild from them. This is the drawing your machine shop receives.
Three questions. Not a quote — a starting point, so you know whether to keep reading.
Every project is quoted at a fixed price before work starts. This is an indication of scale, not a price.
The things most studios make you ask for, written down before you ask.
No. Most people who come to us don't. A description, a photo, or a rough sketch is enough to start — we ask the questions that fill in the rest.
No. A single bracket gets the same engineer as a full assembly. Small projects are often the ones people have been carrying around the longest.
That's reverse engineering and it's one of the things we do most. We measure or scan the part, rebuild it as parametric CAD, and where it makes sense we correct the flaws that were in the original.
You do. Every file, every drawing, every revision — permanently, with no licence back to us and no conditions attached.
We design for manufacture and hand you everything a shop needs. We're not a machine shop ourselves, but we'll speak directly to yours and resolve anything they raise.
Three revision rounds are included, and most projects use two. If something we specified turns out to be wrong, fixing it is on us — that's what design for manufacture means.
Describe it however it lives in your head. Rough is fine. Rough is normal.
