Multi-purpose foldable stretcher
Modular folding sections on a reinforced frame with 360° casters.
MD-09 · Render 02

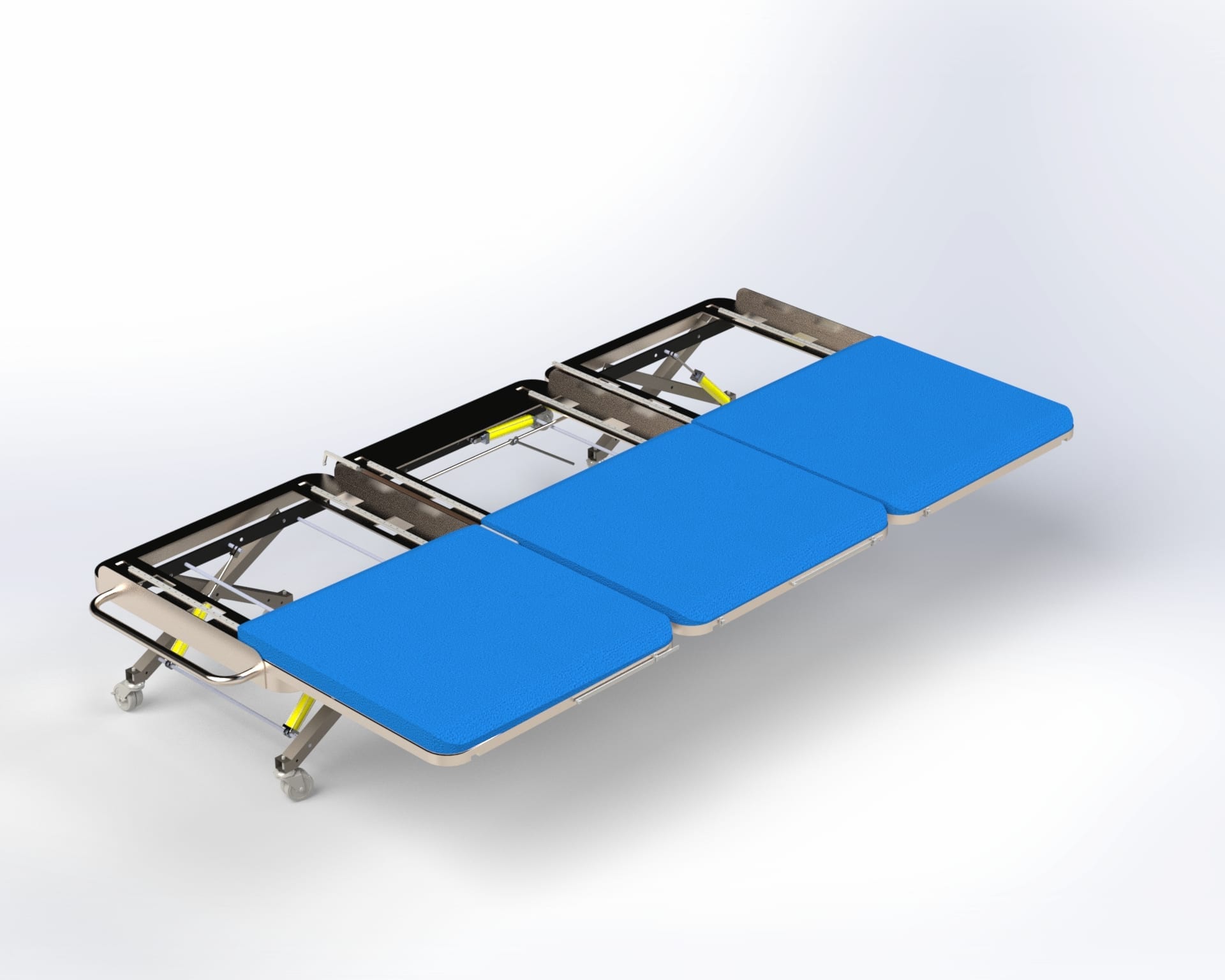

MD-09 · Render 03

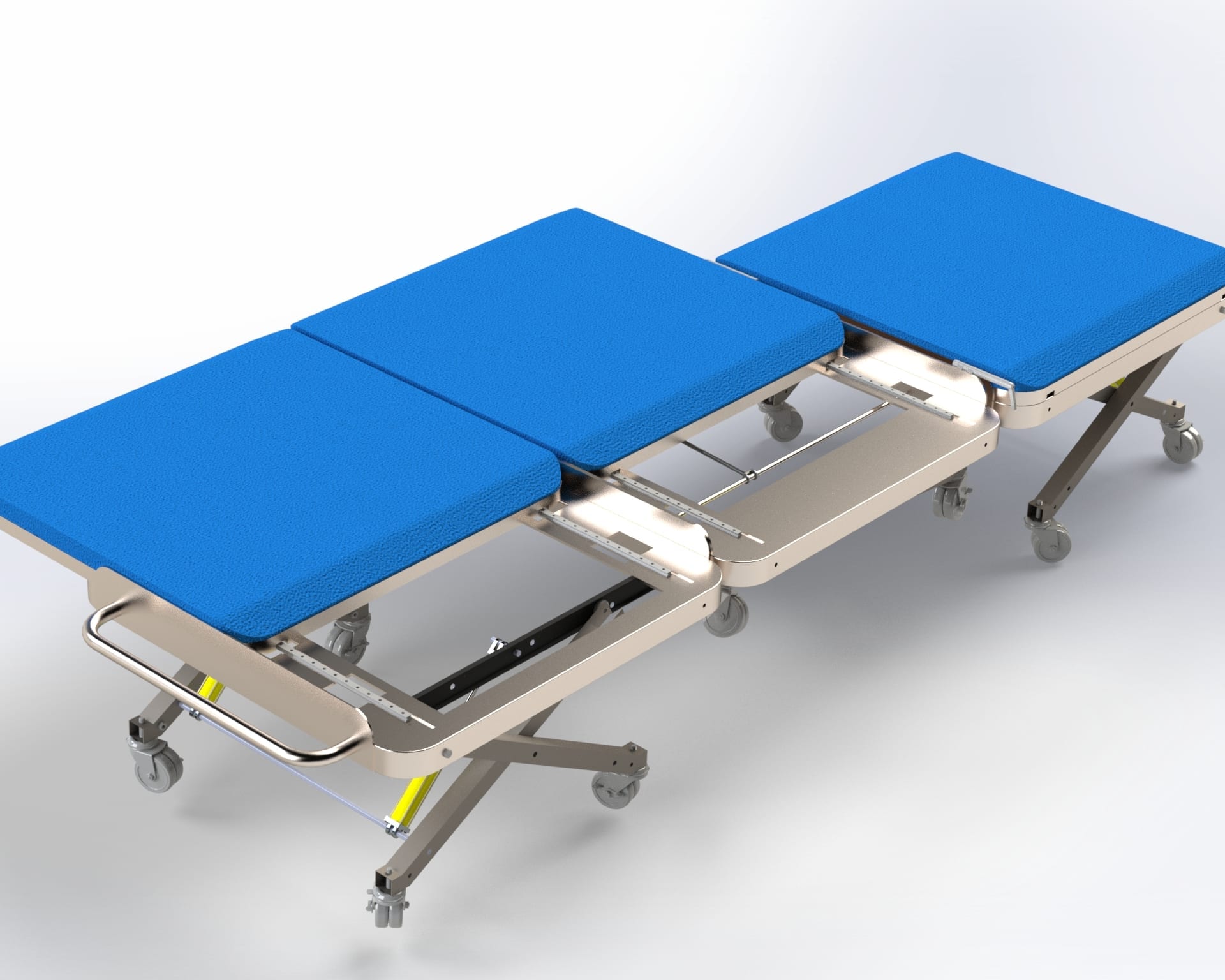

MD-09 · Render 0402Approach

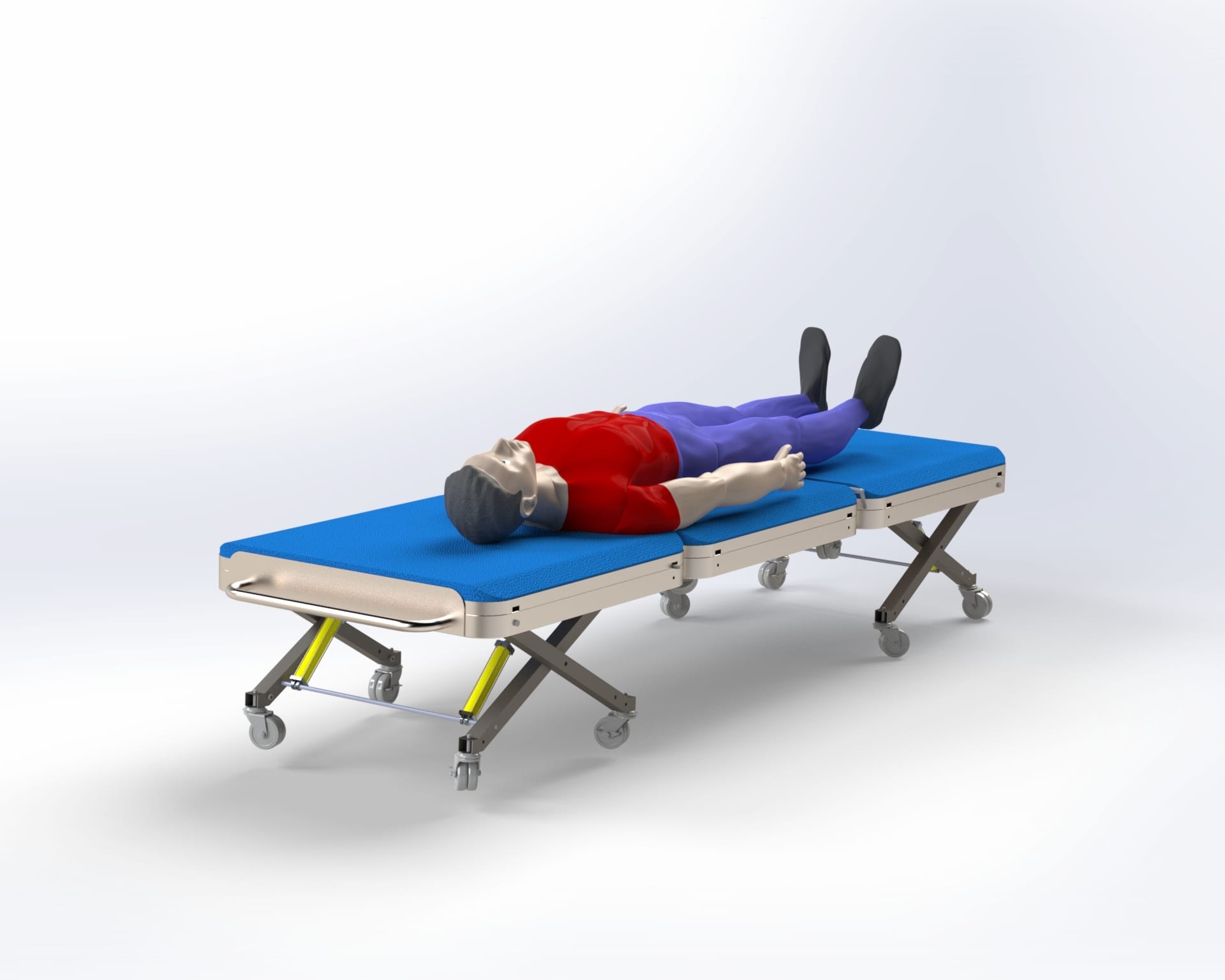

We split the frame into hinged sections, each with its own pad, so one frame gives several positions. Crossed legs carry the casters, yellow gas struts under the sections support them as they move, and a patient figure laid on the deck let us check the section breaks against the body.
03Result
A complete model of the frame, fold mechanism, pads and casters, shown open, with the pads lifted and with a patient in place.
